Function and its characteristics
1. PLC programmable control of the production process.
2. Man-machine dialogue control, production parameters of the screen display, broken paper automatically shut down.
3. Base paper pneumatic on the machine, unwinding independent supporting tension control device.
4. Product rewinding process before the first loose, and can adjust the degree of tightness.
5. Bearing, electrical components, timing belt with brand-name products.
Main Technical | ||
Model | MW-SW3000 | |
Max Paper Width | 3000mm | |
Max Unwinder Diameter | ≦1200mm | |
Material | 13-180gsm Paper | |
Paper Core | φ3' (76.2mm) | |
Paper stand unwinder | 2 stands | |
Setting | PLC | |
Speed | 80-150m/min | |
Product outer diameter | φ90-170mm | |
mechanical transmission | Multitronic gear box | |
Air | 3ph compressor ，mini pressure 5kg/cm2 (client supply) | |
Power | 3KW | |
Voltage | 220V,50HZ | |
Machine dimensions | 6.6x3.0x1.7 (m) | |
Machine Weight | 3T | |
Main Feature | ||
1 |

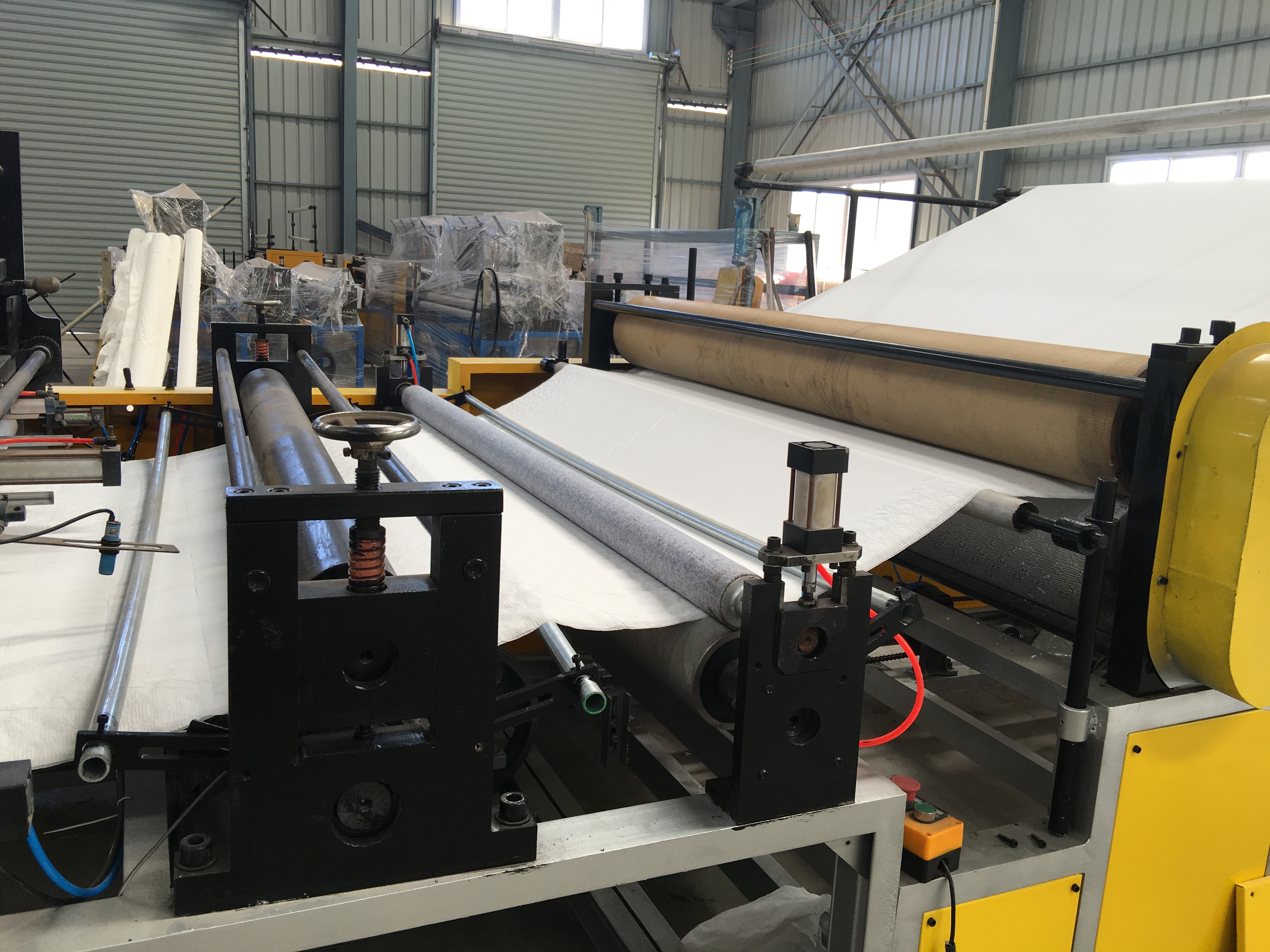

| 1.Base paper support system: 2. Pneumatic base paper lifting device. 3. Two rollers can withstand 1-1.6 tons of base paper will not bend to ensure that the paper core parallel 4.Can be two rolls of paper used alternately, the production of single-layer base paper, base paper can be moved, the location of the base paper can be adjusted; 5. By increasing the cylinder pressure release bracket on the base paper, the entire machine can not be less than Φ10mm trachea, the main trachea can not be lower than Φ12mm 6.The pressure of all pneumatic parts is adjustable |
2 |

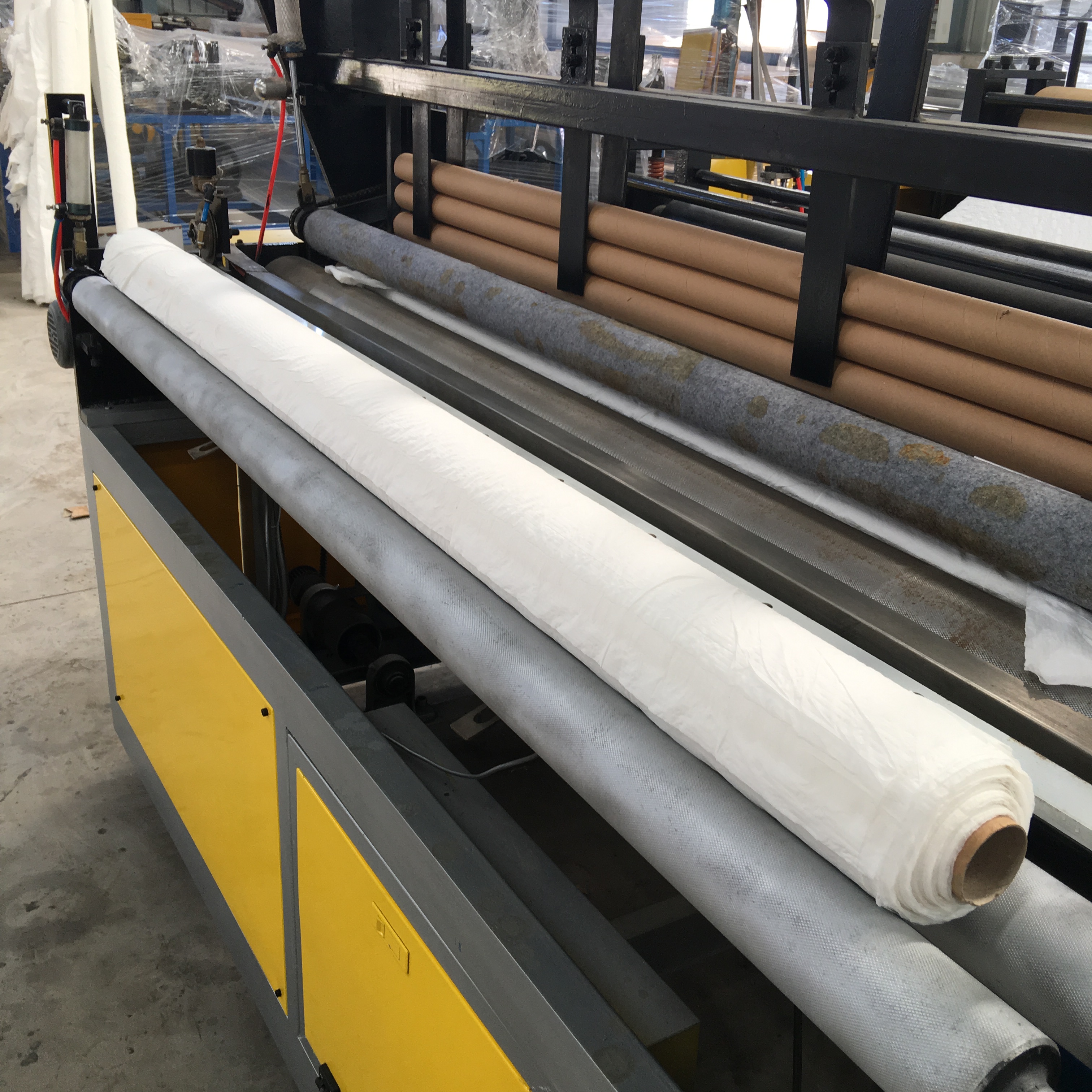

| v Paper core storage station: v Store the paper core to be used v When the finished product is finished, the next paper core is automatically dropped v The paper runs out and the machine stops automatically v Plus paper core: automatic paper core |
3 |

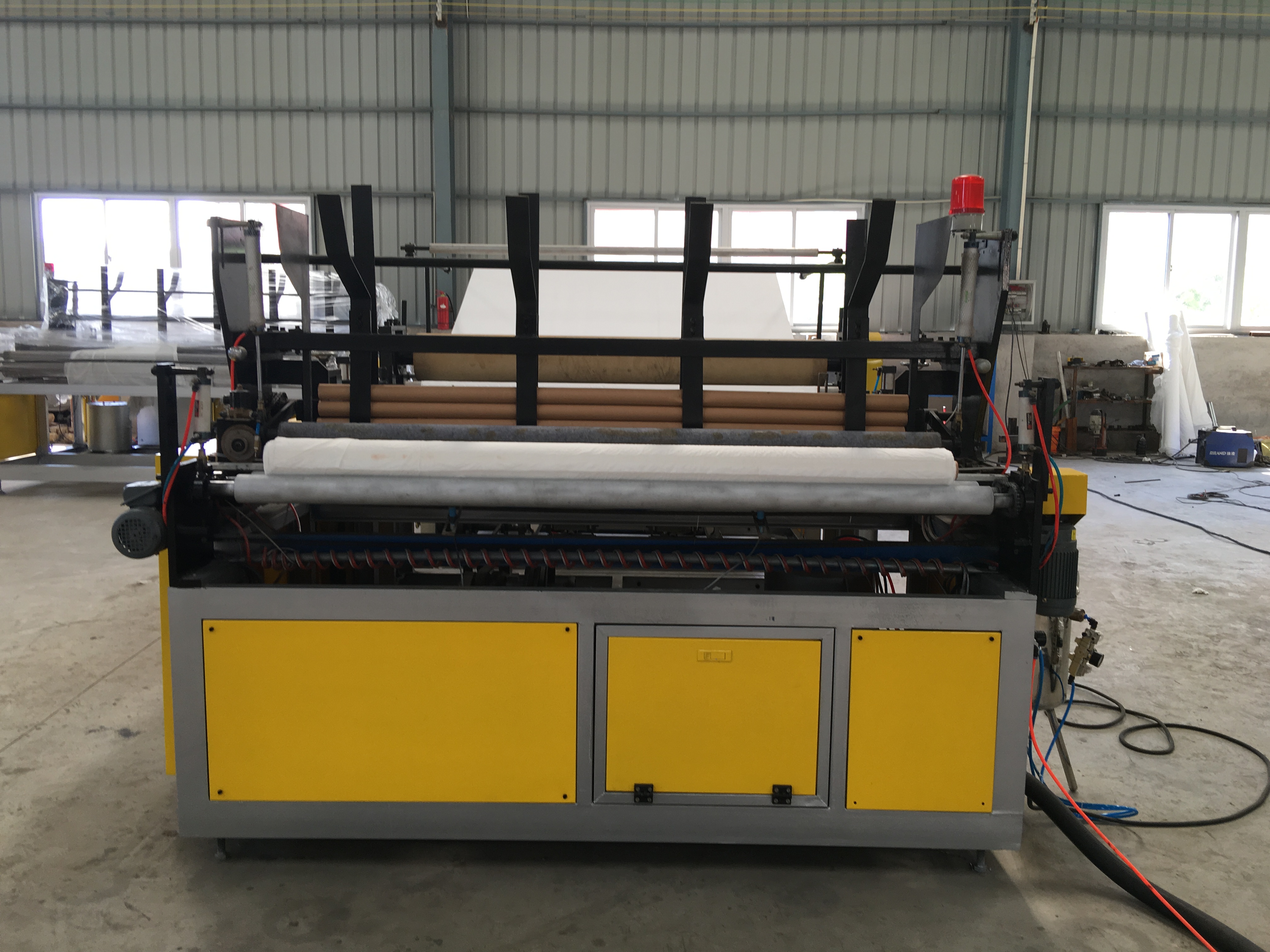

| v Rewinding system: v Rewinding form: 3-axis winding v Bottom around the roll: 2 axes v Top roller: 1 axis, pneumatic suspension v Finished product unloading: automatic v Paper core movement: Pneumatic control |
4 |
| 1.Control System 2. Program control: with programmable logic controller (PLC) 3. Parameter setting: Operation panel 4. Operating voltage: 24V stable voltage 5.There is a paper break on each paper stand 6. No paper core alarm: when the core runs out, automatic alarm 7. Transmission speed control 8.Fault indicator (run, start or fault alarm) 9. The inverter controls the main motor 10.Finished product control: increase to the required setting |
5 |
| Product Automatic Discharge system |
6 | 1. Drive system and adjustment device: 2. The transmission system is composed of sprockets and belts; 3. Use the tensioner to adjust the tension of the belt; 4.There is a tension adjustment device according to the width of the base paper to adjust; 5. Embossing roller and knife roller all use the Japanese brand (NSK) bearings, electrical original use of brand-name products. | |
7 |
| 1. Finished product: 2. Rewinding finished product without wrinkling without rupture 3. Winding diameter should reach the specified number; 4. Slitting length according to the order requirements, vertical without tilt 5. Machine inspection requirements: speed 0-180 / min; 6. Unqualified rate ≤0.5% (excluding legacy). |
