The automatic packing line is all researched and development by our factory, the controller of the machine is PLC, and the driver is multi-servo. It is integral system of all the electricity. It is our honor because owing three patents. The greatest advantage is this packing line greatly improve the production efficiency and saving labor, and also reduce the second pollution, it is full compliance with health and safety requirements.
Application:

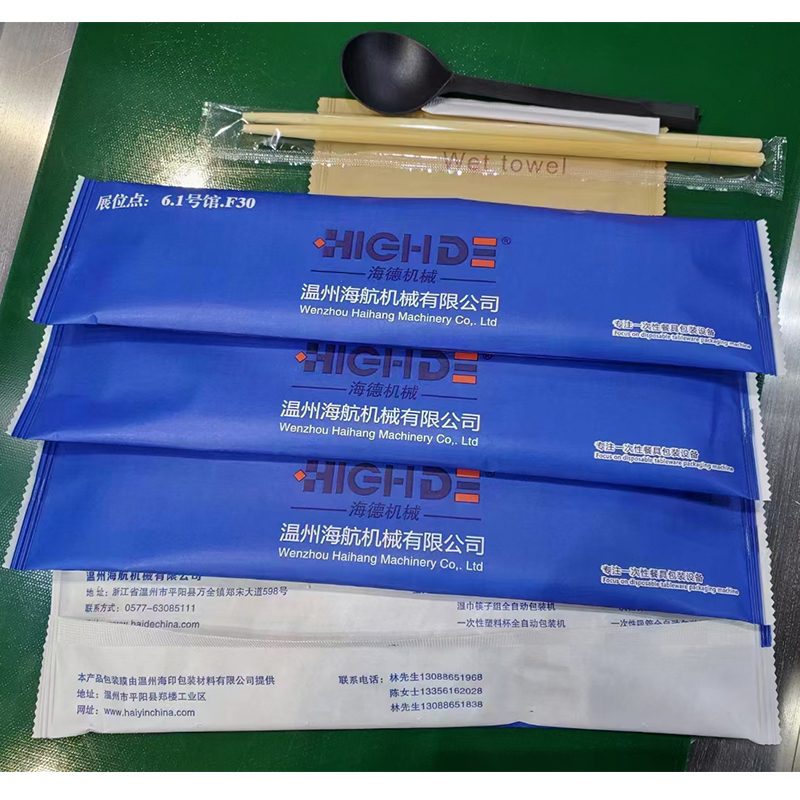

The packing line is used for automatic cutting, folding and loading napkin, wet tissue, salt bag, pepper bag etc. As for customer requirements, this packing line can add straw auto-loading equipment, disposable cutlery auto-packing equipment such as straw, chopsticks, napkin, spoon, knife and fork etc.
Napkin Folding Unit:
| Model | PPBZJ-450 |
| Speed | 20-150 bags/min |
| Napkin Dimensions | 6-17 inch |
| Folding Range | 6-12 fold |
| Folding Width | 25-60mm |
| Max. Napkin Rolls Diameter | Φ900 |
| Max. Napkin Width | 450mm |
| Napkin Embossing Width | 330mm |
| Machine Size | 8200x1300x1800mm |
| Weight | 1600KG |
| Power | 3.5kW |
Horizontal Packing Unit:
| Model | PPB-260 |
| Max. Film Width | 250mm |
| Film Thickness | 0.012-0.05mm |
| Packing Speed | 20-150 bags/min |
| Finished Packing Size | Length: 100-300mm |
| Width: 30-80mm | |
| Height: ≤35mm | |
| Machine Size | 8200x1300x1800mm |
| Weight | 1600KG |
| Power | 3.5kW |
Auto-loading Unit(Salt Bag, Sugar Bag, Pepper Bag ect):
| Model | PPGZJ-200 |
| Max. Loading Speed | 150 bags/min |
| Max. Dimension | 75mm |
| Control System | PLC + Servo motor |
| Machine Size | 8200x1300x1800mm |
| Weight | 1600KG |
| Power | 3.5kW |
Straw Auto-loading Unit:
| Model | PPXG-200 |
| Straw Diameter | Φ0.3-0.6mm |
| Straw Length | 100-200mm |
| Loading Speed | 20-150 piece/min |
| Machine Size | 8200x1300x1800mm |
| Weight | 1600KG |
| Power | 3.5kW |
Our Services:
1. Warranty: 1 year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
2. Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
3. Quotation: valid for 60 days.
