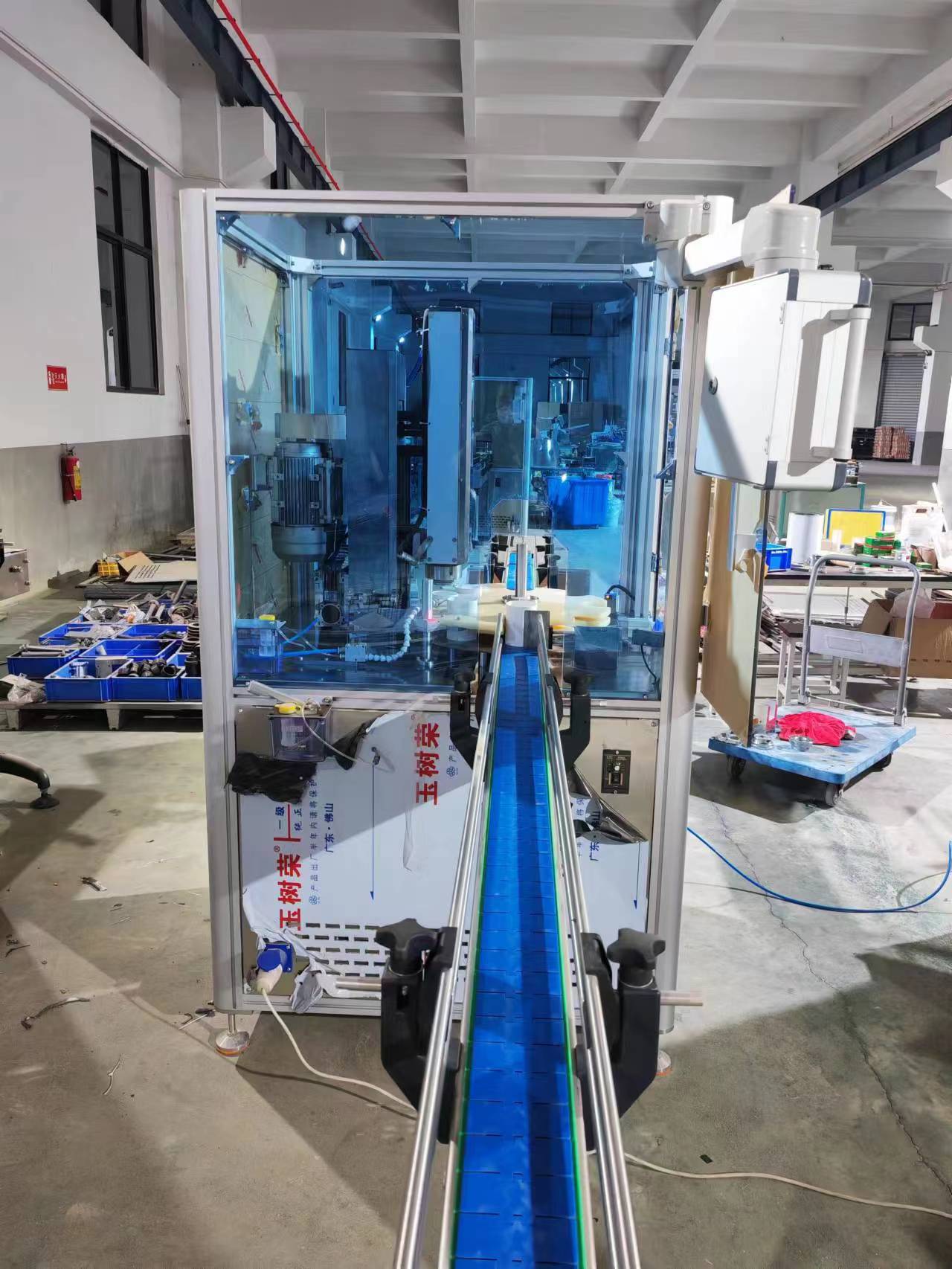

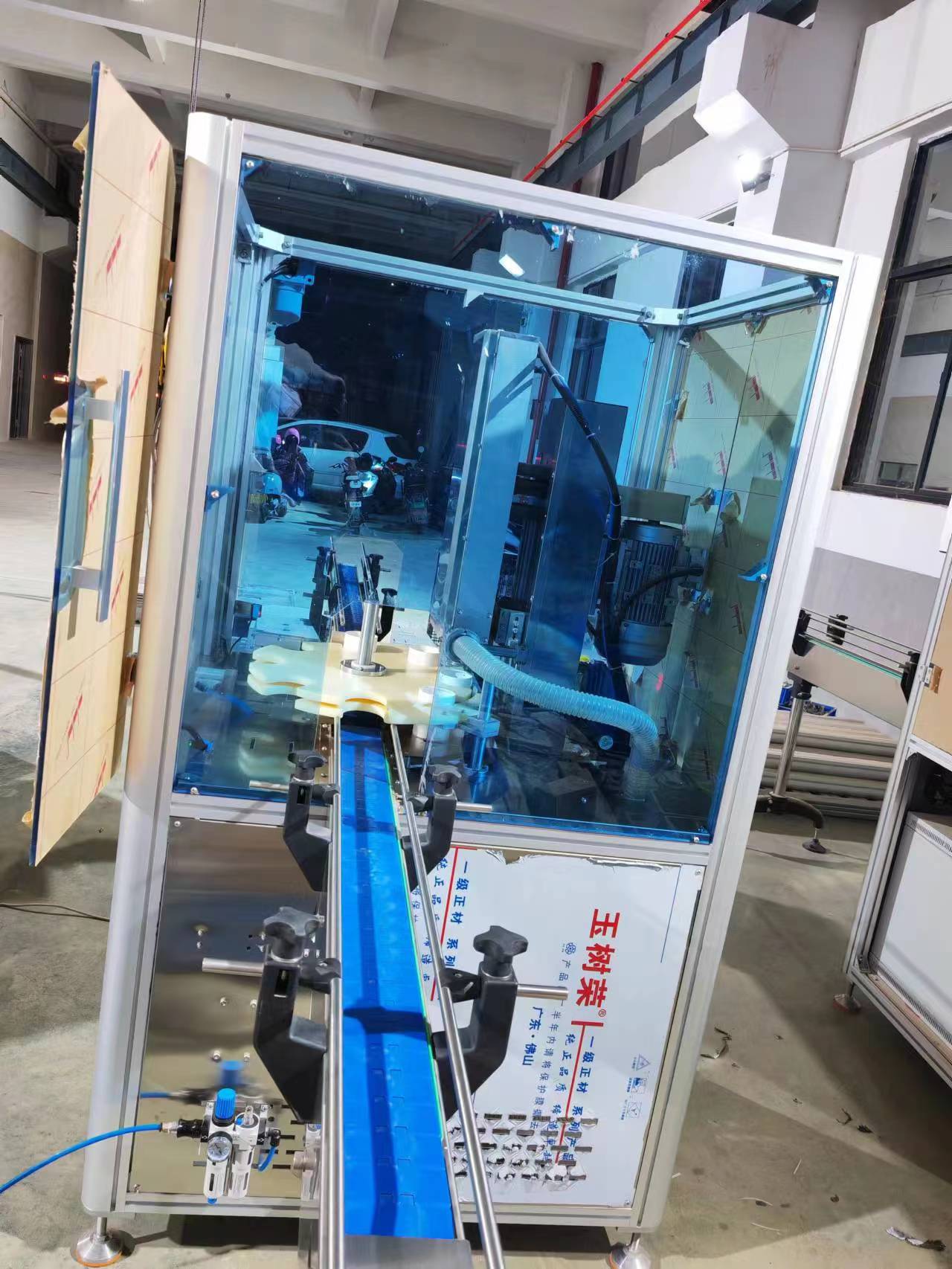

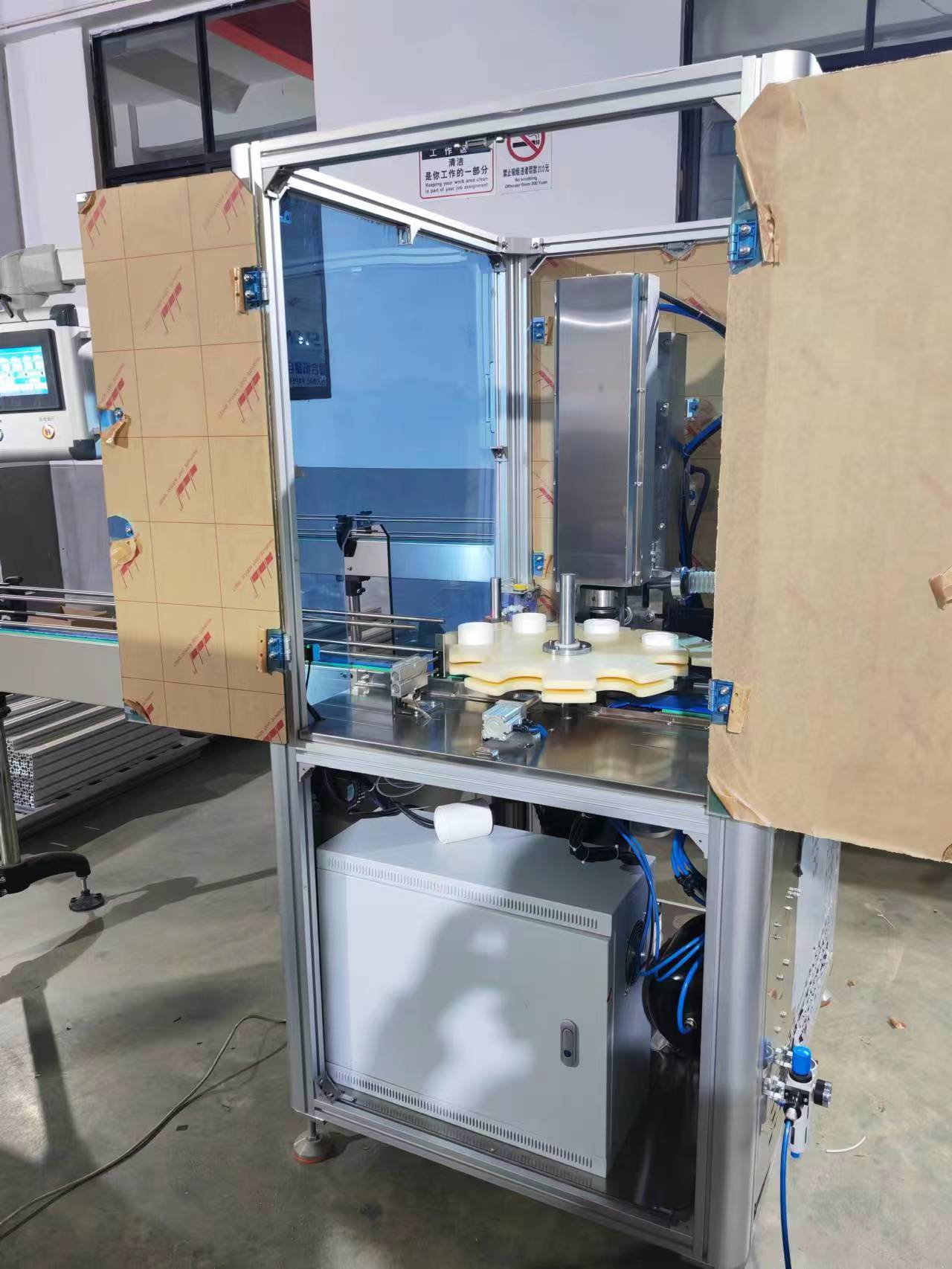

use：
1. It is mainly used in the inner edge-rolling process of paper cans or the enlarging process of the front and the front ends of sealing cans. It can switch different working modes to realize multi-purpose of one machine.
2. Compatible 360 degree inner roll forming die perfectly conceals the paper tube incision, enhances the mouth hardness, and effectively reduces the forming fold rate.
3. The design and operation of automatic feeding and discharging is very convenient, and the adjustable atomizing lubrication injection system is equipped. There is no oil residue in the moulding mouth after moulding, which effectively improves the moulding reliability.
4. The main body is made of high strength aluminium profile frame and stainless steel sheet metal. Its shape is compact, concise and beautiful, which meets the requirements of food grade and hygiene in various industries.
Technical Parameter：
Diameter range | Φ30-126mm |
Height range | 50-250mm |
Paper thickness | 0.7-1.5mm |
Accuracy | ±0.3-0.5mm |
Feeding method | 4-station cam division |
Storage quantity | 20-30pcs |
Rated power | 3.3kw |
Host speed | 0-1400 rpm |
Machine weight | 620kg |
Dimensions | 380*110*180cm |
Power voltage | 220v 50Hz |
Air pressure | 0.4-0.6kpa |
speed | 40-50 pcs/min |
control method | PLC |
people | 1 person |
Molding Lubricant | 50#silicone oil |
